SkyTech 270
Premium
Model: SkyTech 270 Premium

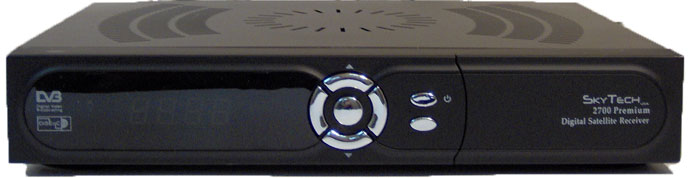

The SkyTech 270 Premium satellite receiver
provides digital free-to-air FTA satellite reception.
The receiver’s POWER SCAN feature provides a Blind Search
function enabling the user to find all broadcasting channels
transmitting from the satellite. All other features of the
receiver are the same as the original Lifetime receiver.
The SkyTech 270 Premium receiver is fully MPEG2/DVB compliant,
supports multi-languages, and has an easy to use menu
system. The intuitive On-Screen Display (OSD) allows for
quick channel searching capabilities. With the ability to
move, delete, and re-name channel or satellite information,
it’s simple to reorganize your channels the way you want
them.
In North America, the Lifetime receiver provides Dolby
Digital audio (AC-3) for the PBS channels broadcast on the
AMC 3 satellite.
|
|
|
Digital Free-to-Air Satellite
Receiver with Smart Search
5,000 Channel Memory (TV & Radio)
Store up to 5 Favorite Channel Lists
Dolby Digital Audio Out and
S-Video (North American model)
FEATURES:
|
FREE TO AIR
MPEG-2
SMART SEARCH
UHF/IR READY
SAT KEY
DIGITAL AUDIO OUT
100 SAT, 5000 CH
UNIVERSAL REMOTE READY
|
SkyTech
270 Premium • EPG (Electronic Program Guide)
• Full Compliant of MPEG-2 Digital & DVB broadcasting
• 950-2,150 MHz input Frequency (IF Loop Throughout)
• Variable Input Symbol Rate (1-45 Msps)
• Multi Language OSD
• Automatic PAL/NTSC Conversion
• Fast Channel Change
• 5,000 Channels TV & Radio Program
• Universal Remote Ready
• Flexible reception of SCPC & MCPC from C/Ku-Band Satellites
• S/PDIF (Digital Audio or Dolby AC3 Stream out)
• Timer Function (Automatic Turn On/Off by Setting Function)
• 256 Colors (Graphic User Interface) Number
• PIG (Picture In Graphic)
• 5 Favorite List & Unlimited Programs per each
• Powerful Channel Editing Function
- Sorting : Alphabetic, Satellite, FTA/Scramble, Parental Lock
- Move, Delete, Favorite Edit
- Parental Lock, Channel Rename, Channel Skip
• Manual PID / Satellite & TP / Network Scan
• Smart Search
• Satellite Scan – Simultaneous Scan with 4 Satellites
• DiSEqC 1.3 Control Compatible (STAB USALS)
• Capable of Setting the Frequency for SMATV System
• Software Upgrade via RS-232C (Receiver to Receiver, PC to
Receiver) |
| |
 |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
Tuner (Smart Search) / LNB |
|
2
Input Connector F-type |
IEC
169-24 |
|
IF
Input Frequency |
950MHz to 2150MHz |
|
IF
Loop Throughout |
950MHz to 2150MHz |
|
IF
Frequency |
Zero-IF |
|
Input
Level |
-65
dBm~ -25dBm |
|
LNB
Power |
13/18V DC |
| |
500mA
Max |
|
DiSEqC Control |
Version 1.3 Compatible |
|
Band
Switching |
22KHz
Tone |
|
Demodulation |
QPSK |
|
System Rate |
1~45
Msps (SCPC, MCPC) |
|
Viterbi Decoding Rate |
1/2,
2/3, 3/4, 5/6, 7/8 |
|
Reed
Solomon Decoding |
FEC
204, 188. t=8 |
|
DiSEqC |
1.3
Compatible |
|
|
(STAB
USALS) |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
DATA PORT |
|
|
Connector |
9 Pin
D-Sub Female |
|
|
Data
Rate |
Max.
19.2 Kbps |
|
|
Protocol |
RS
232 Asynchronous |
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
RF Modulator |
|
Connector |
IEC 169-24 |
|
|
Male / Female |
|
Frequency |
CH 3 (61.25MHz) |
|
|
CH4 (67.25 MHz) |
|
Output Channel |
CH 3-4 |
|
TV Standard |
NTSC |
|
Preset Channel |
CH3, Changeable by Menu Screen |
|
|
| |
|
|
|
Front Panel |
|
|
4
Digits LED Display |
Channel Number Display |
|
| 3 Keys |
Power, Channel Up/Down |
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
MPEG Transport Stream & A/V Decoding |
|
|
Demultiplex |
According to ISO/IEC |
|
| |
13818-1 |
|
Input
Stream |
Max.
90 Mbit / s |
|
|
Aspect Ratio |
4:3,
16:9 |
|
|
Video
Resolution |
720 x
576 |
|
|
Audio
Decoding |
MPEG
layer I and II |
|
|
Audio
Mode |
Single/Dual Channel, |
|
| |
Stereo, Joint Stereo |
|
|
Sampling Frequency |
16/22,05/24/32/44,1/48 khz |
|
| |
Dual
Channel, |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
Rear Panel |
|
IF
Input |
F-type Connector |
|
IF
Loopthrough output |
F-type Connector |
|
4
Phone (Cinch) |
Video, Audio L, Audio R, S/PDIF |
|
Skew |
3 Push Terminal (5V, GND, PULSE) |
|
S-VHS |
|
| |
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Microprocessor & Memories |
|
|
|
|
Remote Control (Universal Remote Ready)
|
|
|
Type |
Infra-red (carrier Freq: 38KHz) |
|
|
|
|
|
|
| |
|
| |
|
|
|
| |
|
Main
Processor |
Sti 5518 BVB,
ST20 32bit |
|
|
| |
|
CPU
Clock |
81MHz(100 MIPS) |
|
|
| |
|
Flash Memory
|
2 Mbyte |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
SDRAM |
8 Mbyte |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
Others |
|
Input
Voltage |
AC
90~250V, 50/60 Hz |
|
Power
Consumption |
Max.
55W |
|
Standby Power |
Less
than 5W |
|
Dimension |
290 x
200 x 65mm |
|
Weight |
2.1 Kg |
|
|
|
| |
|
|
EEPROM |
32 Kbit |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
Modulator |
|
|
RS232
Serial Port |
9 Pin
D-sub Type |
| |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
