SkyTech 46cm KU Band Offset Dish Antenna.
Model SK46-PWT4 0.6mm
Panel (Sector Divided) 1
Offset Angle 24.12
Aperture Diameter Short Axis 46CM
Aperture Diameter Long Axis 50.4CM
Ku-Band Gain@ 12.5GHz 33dB
F/D Ratio 0.64
Focus Length 29.3CM
Material Steel
Finish Polyester Powder Coating
Mounting Type Pole&Wall / Wall
Elevation Alignment 0 to 90
Azimuth Alignment Fixed/0 to 360
Operational Winds Able to receive 25m/sec
Able to re-set 40m/sec
Not broken & fly away 60m/sec
Relative Humidity 0 - 100%
Ambient Temperature -40C to +60C
60cm KU Band Offset Dish Antenna

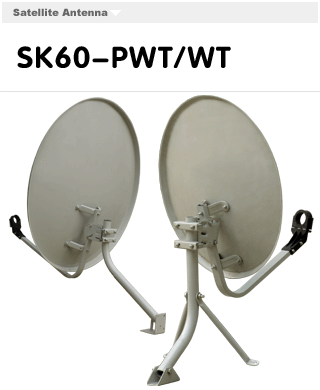

SkyTech 60cm KU Band Offset Dish Antenna.
Model SK60-PWT4 0.6mm
75cm KU Band Offset Dish Antenna

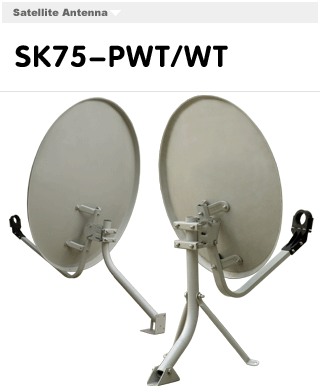

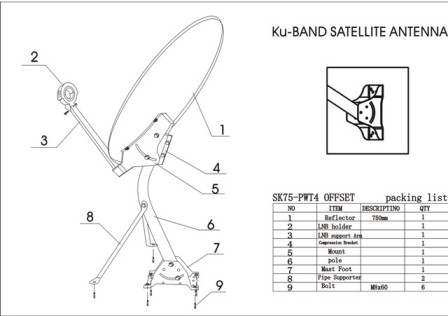

SkyTech 75cm KU Band Offset Dish Antenna.
Model SK75-PWT4 0.6mm & 0.7mm
Panel (Sector Divided) 1
Offset Angle 22.7
Aperture Diameter Short Axis 75CM
Aperture Diameter Long Axis 85.3CM
Ku-Band Gain@ 12.5GHz 38.52dB
F/D Ratio 0.65
Focus Length 48.75CM
Material Steel
Finish Polyester Powder Coating
Mounting Type Pole&Wall / Wall
Elevation Alignment 0 to 90
Azimuth Alignment Fixed/0 to 360
Operational Winds Able to receive 25m/sec
Able to re-set 40m/sec
Not broken & fly away 60m/sec
Relative Humidity 0 - 100%
Ambient Temperature -40C to +60C
55cm KU Band Offset Dish Antenna (NEW)
SkyTech 55cm KU Band Offset Dish Antenna.
Model SK55T-PW White (Clear)
Item No
SK55T-PW/W
Panel(Sector Divided)
1
Offset Angle
23.56°
Aperture Diameter
Short Axis
55CM
Long Axis
60CM
Ku-Band Gain@ 12.5GHz
33.8dB
F/D Ratio
0.66
Focus Length
36.6CM
Material
Polyester
Mounting Type
Pole&Wall /Wall
Elevation Alignment
0°～90°
Azimuth Alignment
Fixed/0°～360°
Operational Winds
Able to receive
25m/sec
Able to re-set
40m/sec
Not broken & fly away
60m/sec
Ambient Temperature
-40℃～+60℃
Relative Humidity
0～100%
<
75cm KU Band Offset Dish Antenna (NEW)
SkyTech 75cm KU Band Offset Dish Antenna.
Model SK75T-PW White (Clear)
Item No
SK75T-PW/W
Panel(Sector Divided)
1
Offset Angle
22.7°
Aperture Diameter
Short Axis
75CM
Long Axis
85.3CM
Ku-Band Gain@ 12.5GHz
38.52dB
F/D Ratio
0.65
Focus Length
48.75CM
Material
Polyester
Mounting Type
Pole&Wall /Wall
Elevation Alignment
0°～90°
Azimuth Alignment
Fixed/0°～360°
Operational Winds
Able to receive
25m/sec
Able to re-set
40m/sec
Not broken & fly away
60m/sec
Ambient Temperature
-40℃～+60℃
Relative Humidity
0～100%
75cm KU Band Ground Dish Antenna
SkyTech 75cm KU Band Ground Dish Antenna.
Model SK75-GT4 0.6mm
Item No
SK75-G
Panel(Sector Divided)
1
Offset Angle
22.7°
Aperture Diameter
Short Axis
75CM
Long Axis
81.3CM
Ku-Band Gain@ 12.5GHz
38.52dB
F/D Ratio
0.65
Focus Length
48.75CM
Material
Steel
Finish
Polyester Powder Coating
Mounting Type
Ground
Elevation Alignment
0°～60°
Azimuth Alignment
Fixed/0°～360°
Operational Winds
Able to receive
25m/sec
Able to re-set
40m/sec
Not broken & fly away
60m/sec
Ambient Temperature
-40℃～+60℃
Relative Humidity
0～100%
90cm KU Band Offset Dish Antenna
SkyTech 90cm KU Band Offset Dish Antenna.
Model SK90-PWT4 0.7mm
Panel (Sector Divided) 1
Offset Angle 24.62
Aperture Diameter Short Axis 90CM
Aperture Diameter Long Axis 99CM
Ku-Band Gain@ 12.5GHz 40.32dB
F/D Ratio 0.60
Focus Length 54CM
Material Steel
Finish Polyester Powder Coating
Mounting Type Pole&Wall / Wall
Elevation Alignment 0 to 90
Azimuth Alignment Fixed/0 to 360
Operational Winds Able to receive 25m/sec
Able to re-set 40m/sec
Not broken & fly away 60m/sec
Relative Humidity 0 - 100%
Ambient Temperature -40C to +60C
90cm KU Band Ground Dish Antenna
SkyTech 90cm KU Band Ground Dish Antenna.
Model SK90-GT 0.7mm
Item No
SK90-G
Panel(Sector Divided)
1
Offset Angle
24.62°
Aperture Diameter
Short Axis
90CM
Long Axis
99CM
Ku-Band Gain@ 12.5GHz
40.32dB
F/D Ratio
0.6
Focus Length
54CM
Material
Steel
Finish
Polyester Powder Coating
Mounting Type
Ground
Elevation Alignment
0°～60°
Azimuth Alignment
Fixed/0°～360°
Operational Winds
Able to receive
25m/sec
Able to re-set
40m/sec
Not broken & fly away
60m/sec
Ambient Temperature
-40℃～+60℃
Relative Humidity
0～100%
120cm KU Band Offset Dish Antenna
SkyTech 120cm KU Band Offset Dish Antenna.
Model SK120-P/PM 0.8mm
Panel (Sector Divided) 1
Offset Angle 23.64
Aperture Diameter Short Axis 120CM
Aperture Diameter Long Axis 131CM
Ku-Band Gain@ 12.5GHz 43.32dB
F/D Ratio 0.60
Focus Length 72CM
Material Steel
Finish Polyester Powder Coating
Mounting Type Pole/ Pole Mount
Elevation Alignment 0 to 90
Azimuth Alignment Fixed/0 to 360
Operational Winds Able to receive 25m/sec
Able to re-set 40m/sec
Not broken & fly away 60m/sec
Relative Humidity 0 - 100%
Ambient Temperature -40C to +60C
<
SkyTech Flat KU Dish Antenna
The Flat satellite antenna comparing with
the dish antenna: Receiving satellite signal efficiency high. The Efficiency of dish antenna is less than 70%, but The Efficiency of Flat
antenna is over than 85% Smaller volume, lighter weight. The height of flat is less than 500mm. The Longitude requirement is lower, for any badly weather. More easy installation and transportation.
Not easy distortion and rust. Use life is longer, it can up to 15years.
